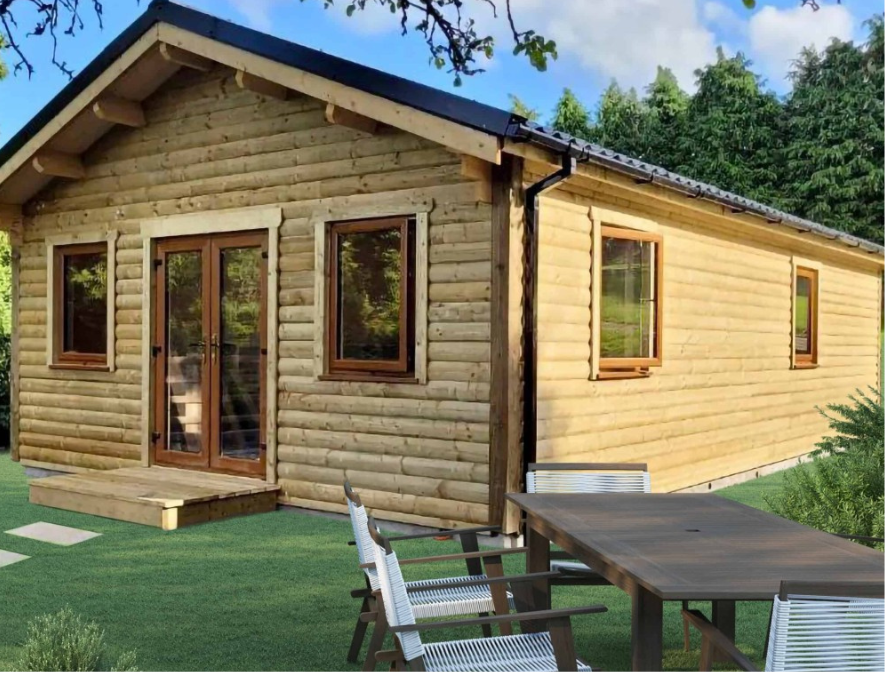

Emma Log Cabin
At Woodford we are able to offer customers a bespoke design service as we are in charge of the design and manufacturing process at our site in Cavan. Our expert staff can help you achieve the perfect solution to suit your school accommodation needs.
- Description
Description
- Imported Scandinavian Spruce
- Wall Thickness ex 44mm TGV Board
- Double Wall To Allow For Insulation
- Wall Insulation – 100mm PIR
- Cladded With Pressure Treated Log Effect Boards
- Pressure Treated 150 * 75mm Wall Carrying Joists
- Pressure Treated 150 * 44mm Floor Joists
- Damp Proof Course 225mm
- Solid 32mm Floor Boards TGV
- Floor Insulation – 100mm PIR
- Roof Beams 225 * 75mm
- Solid 32mm Roof Boards TGV
- Roof Insulation – 100mm PIR
- Breathable Roof Felt Membrane
- Black Tile Effect PVC Coated Steel Roof Cover
- Black Guttering
- uPVC Windows & Doors with sills
- Fully Glazed Double Door x 1
Extra Large Glazed Windows x 6 - 4-12-4 Double Glazed Safety Glass
- Internal Doors, Skirting & Architraves
- Construction Plans
- Not Included: Concrete Base, Electrics, Plumbing, Heating, Painting.
- Overall Dimensions: 10.1m x 6.62m
- Footprint: 5.94m x 7.754m
- Ridge Height: 3.91m
- Wall Height: 2.36m
- Wall Thickness: 44mm
- Roof Thickness: 32mm
- Floor Thickness: 32mm
Internal Measurements
- Classroom Area: 5.94m x 7.754m Width
- Kitchen Area: 2.802m x 2.0m Width
- Toilet Area: 2.802m x 2.0m Width
